| Technical Specifications | |
|---|---|
| Overview | |

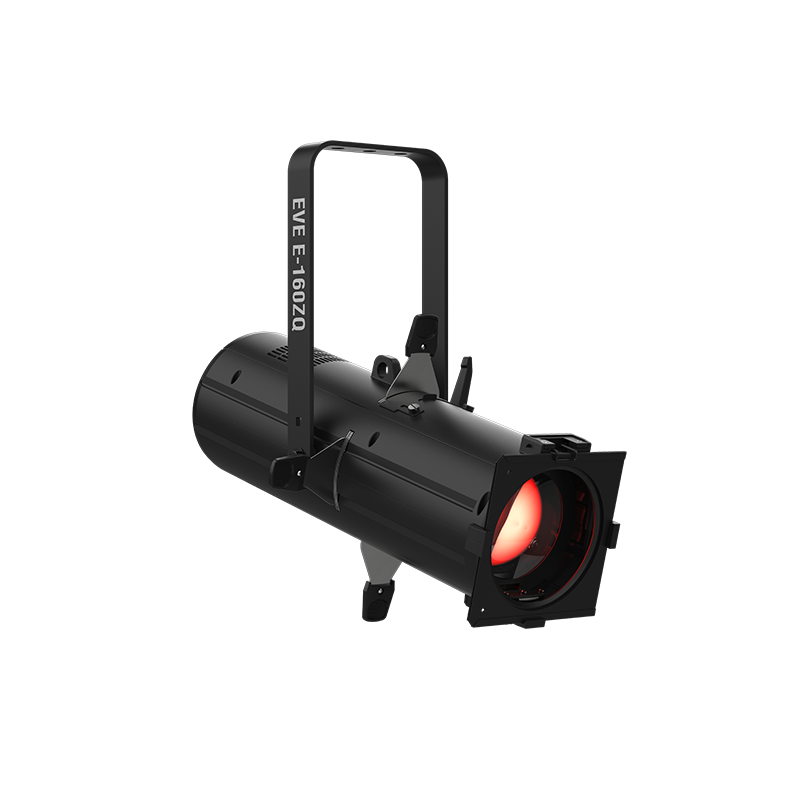

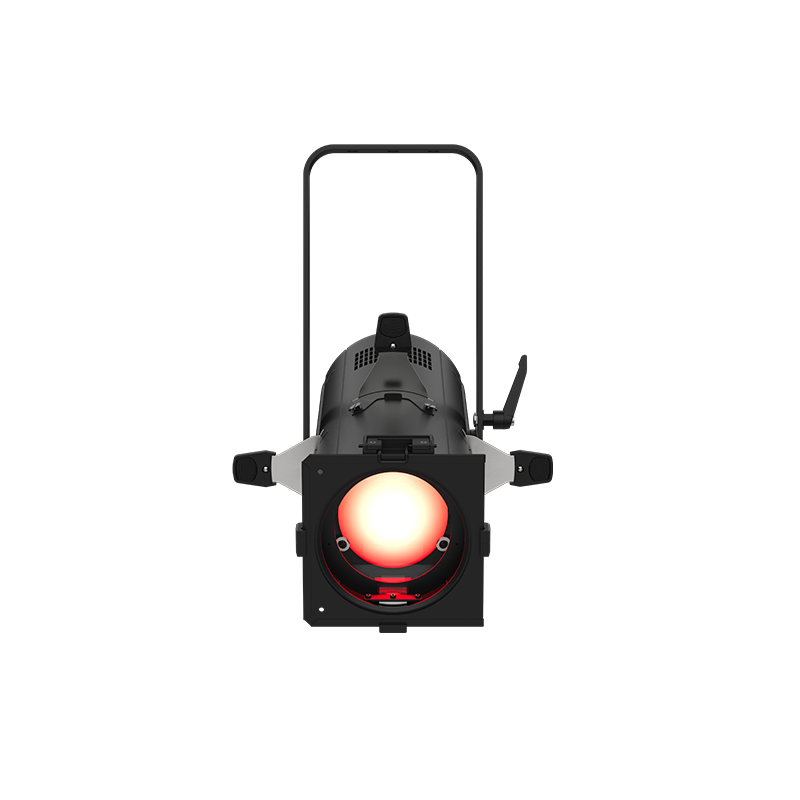

| Fixture Type | Professional LED Ellipsoidal / Profile Spot with Zoom |
| Package Includes | EVE E-160ZQ, Power cord, PowerCON to bare end (EU only), Gel frame, Metal gobo holder, Glass gobo holder |
| Light Source & Performance | |
| Light Source | 1 LED (quad-color RGBW), 160 W (7.3 A), 50,000 hours life expectancy |
| Optics & Optics Specs | Zoom Angle: 24° to 37° Color Temperature Range: 2800 K to 8000 K |
| Illuminance & Lumens | Illuminance (24°): 7,072 lux @ 2 m | 1,132 lux @ 5 m Illuminance (37°): 2,964 lux @ 2 m | 474 lux @ 5 m Lumens: 5,231 |
| Strobe Rate | 1 to 30 Hz |
| Gobos & Accessories | Gobo Size: M (66 mm outside, 48 mm image, 2 mm max thickness) Accessory Holder Size: 6.25 in |
| Control & Connectivity | |

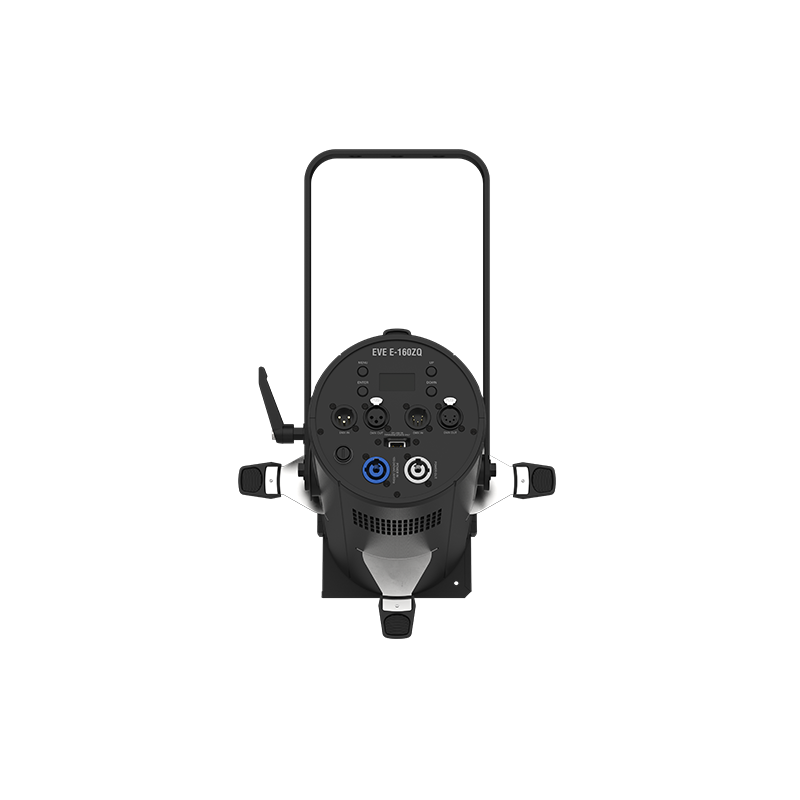

| DMX Channels & Connectors | Channels: 3, 4, or 11 Connectors: 3- and 5-pin XLR |
| Electrical & Power | |
| Input Voltage & Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: 150 W, 1.3 A @ 120 V, 60 Hz; 150 W, 0.7 A @ 230 V, 50 Hz |
| Power Linking | 9 units @ 120 V; 16 units @ 230 V |
| Physical & Certifications | |
| Dimensions & Weight | Size: 18.4 x 9.8 x 16.9 in (467 x 248 x 429 mm) Weight: 12.2 lbs (5.5 kg) |
| Approvals | CE, RoHS, MET |
