CHAUVET Freedom Par Q9

100% TRUE wireless, battery-operated, quad-color (RGBA) LED uplight with built-in D-Fi transceiver
New secondary optics provide perfect color blending with nearly no artifacts

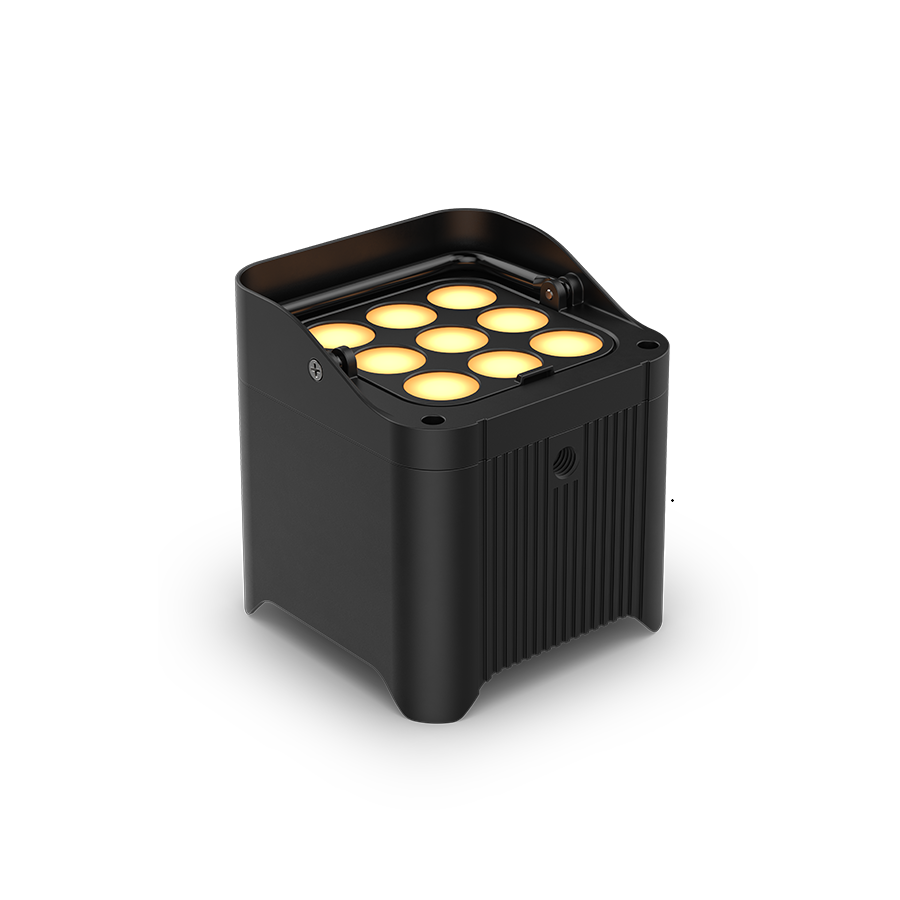

Magnetic diffuser pops on or off with ease and widens the coverage area
Adjustable run times ensure the fixture will last the length of the event
OLED display allows for full-text and to easily change fixture’s settings
Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
Adjust the projection angle using the spring-loaded kickstand
Built-in glare shield protects light spillage and eye fatigue
Extend the fixture’s lifespan with the onboard charge and discharge protection circuitry
Achieve smooth LED fading with built-in dimming curves
Compact and lightweight design easily fits inside sticks of TRUSST®

分類: Chauvet, Chauvet

Technical Specifications
Overview
Fixture Type	Professional Battery-Operated Wireless LED Compact Uplight / Wash Fixture
Light Source & Performance
Light Source	9 LEDs (quad-color RGBA), 6 W, (2.3 A), 50,000 hours life expectancy
Optics & Coverage	Beam Angle: 12° (with diffuser: 37°) Field Angle: 35° (with diffuser: 68°) Lumens: 1,161
Illuminance	@ 2 m: 3,580 lux (standard) / 529 lux (with diffuser)
Strobe Rate	0 to 22 Hz
Control & Connectivity
DMX Channels & Optional Controllers	Channels: 4, 6, or 14 Optional Controllers: RFC, RFC-XL, FlareCON
Wireless & Range	Operating Frequency: 2.412 to 2.484 GHz Max Unobstructed Distance: 600 ft (183 m)
Electrical & Power
Input Voltage & Power	Input Voltage: 24 VDC, 1.5 A (external power supply: 24 VDC, 50/60 Hz) Power and Current: 31 W, 0.3 A @ 120 V, 60 Hz; 30 W, 0.2 A @ 230 V, 50 Hz
Battery & Runtime	Recharge Time: 3 hours Run Time (adjustable): 3, 5, 8, or 12 hrs
Physical & Certifications
Dimensions & Weight	Size: 4.7 x 4.7 x 4.9 in (120 x 120 x 126 mm) Weight: 4.6 lbs (2.1 kg)
Hardware & Mounting	Mounting Hole: M12
Approvals	CE, UKCA, RoHS, FCC
