| Technical Specifications | |
|---|---|
| Overview | |

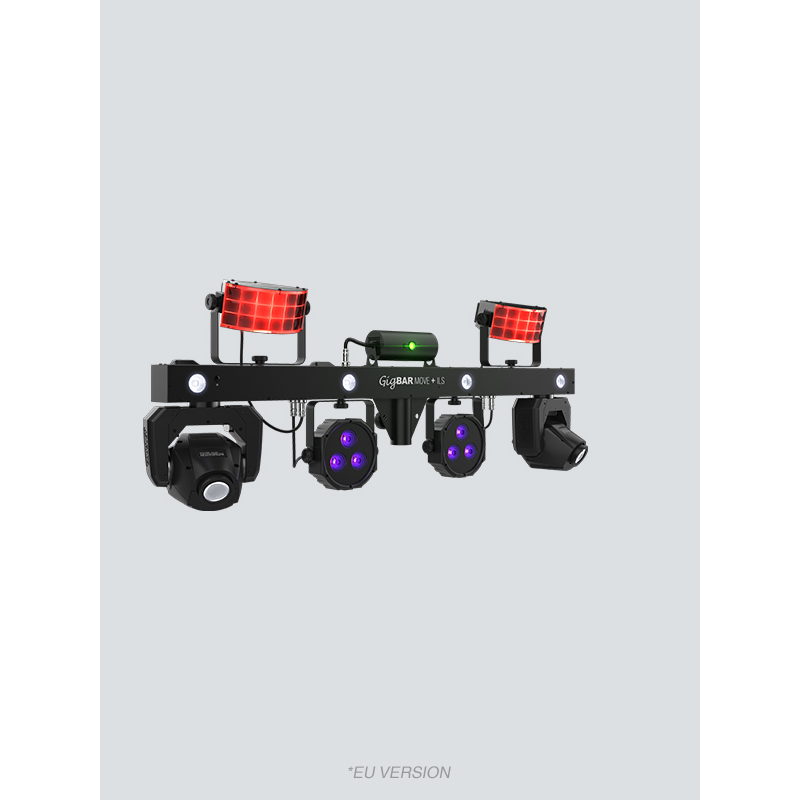

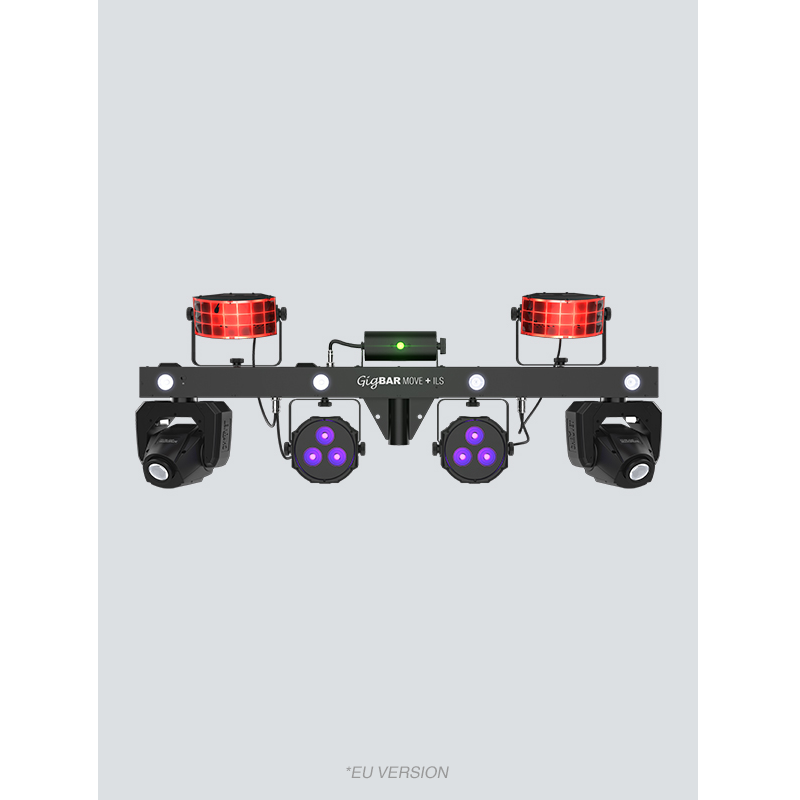

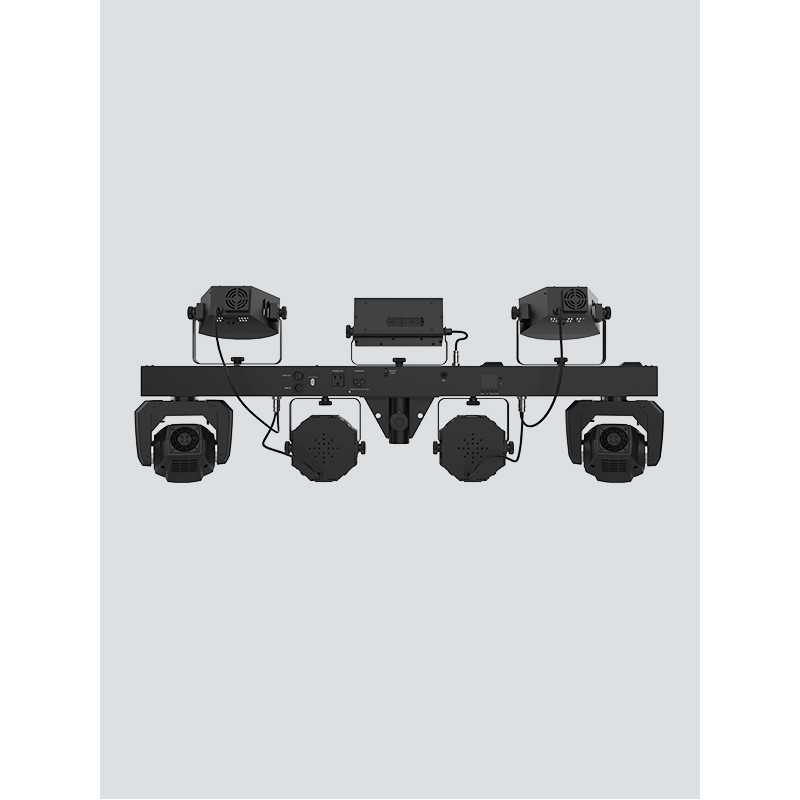

| Fixture Type | Professional Multi-Effect ILS Lighting System (Moving Head, Pars, Strobe, Derby & Laser) |
| Package Includes | GigBar Move Plus ILS, Power cord, RF Remote, Carry bag, Tripod, Tripod carry bag, Footswitch |
| Light Source & Performance | |
| Light Source | Moving Head: 1 LED (cool white), 32 W (3 A), 50,000 hours life expectancy Pars: 3 LEDs (hex-color RGBAW+UV), 6 W (2 A), 50,000 hours life expectancy Strobe: 4 LEDs (cool white), 5 W (1.2 A), 50,000 hours life expectancy Derby: 8 LEDs (2 red, 2 green, 2 blue, 2 white), 6.5 W (2 A), 50,000 hours life expectancy Laser: 638 nm / 30 mW (red), 520 nm / 20 mW (green), 450 nm / 50 mW (blue) laser diodes |
| Optics & Coverage | Beam Angle (Moving Head): 17° Beam Angle (Pars): 22° | Field Angle: 33° Beam Angle (Strobe): 30° | Field Angle: 62° Coverage Angle (Derby): 131° Coverage Angle (Laser): 93° |
| Illuminance | Moving Head @ 2 m: 5,140 lux (per head) Pars @ 2 m: 1,205 lux (per par) Strobe @ 2 m: 130 lux |
| Strobe Rate | 0 to 30 Hz |
| Colors & Gobos | Colors (Moving Head): 9 + open, split colors, continuous scroll at variable speeds Gobos (Moving Head): 9 + open, continuous scroll at variable speeds |
| Pan and Tilt | 540° / 180° |
| Control & Connectivity | |
| DMX Channels & Connectors | Channels: 3, 29, or 51 Connectors: 3-pin XLR Included Controllers: RF remote, wireless footswitch Optional Controllers: RF |
| Wireless & Range | D-Fi Max Unobstructed Distance: 600 ft (183 m) Footswitch Operating Frequency: 433 MHz Footswitch Max Unobstructed Distance: 100 ft (30.5 m) |
| Electrical & Power | |
| Input Voltage & Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: 250 W, 3 A @ 120 V, 60 Hz; 248 W, 1.8 A @ 230 V, 50 Hz |
| Power Linking | 7 units @ 120 V; 12 units @ 230 V |
| Controller Batteries | Footswitch Battery: 9 V alkaline RF Remote Battery: 23A, 12 V alkaline |
| Physical & Certifications | |
| Dimensions & Weight | Size (Bar Only): 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm) Weight (Bar Only): 31 lbs (14 kg) |

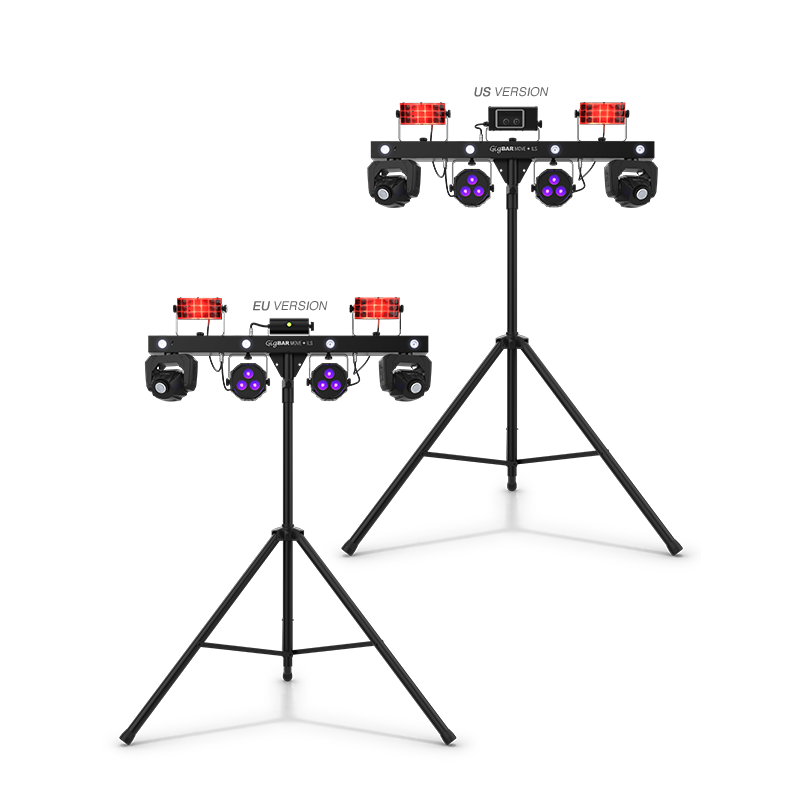

| Stand & Tripod Hardware | Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m) Tripod Size Compatibility: 1.5 in (37.4 mm) Tripod Thickness: 1.37 in (35 mm) Cable Length: 10 ft (3 m) |
| Approvals | CE, UKCA, RoHS, FCC, FDA |
