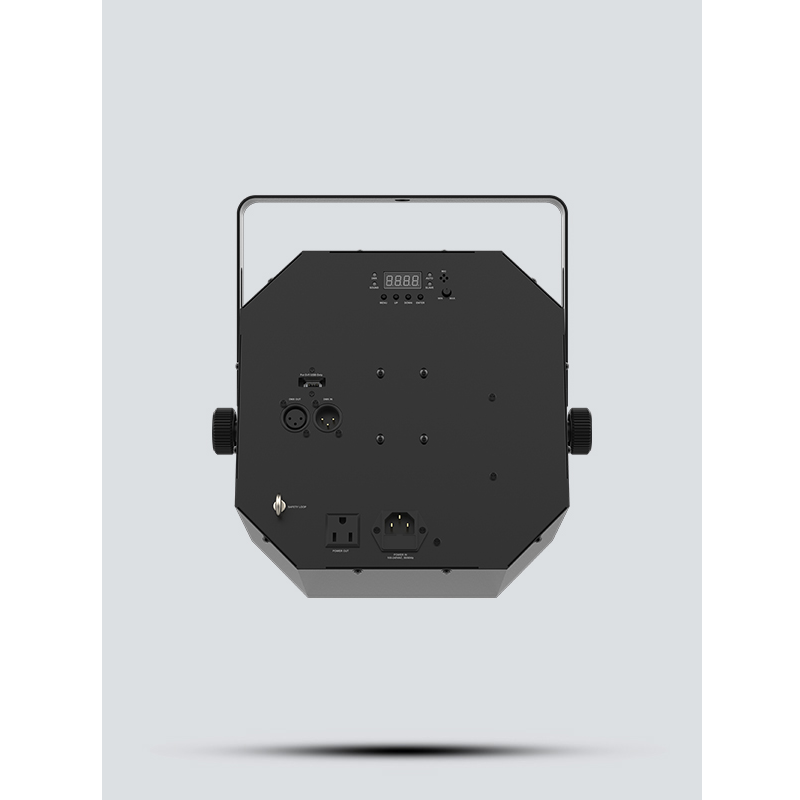

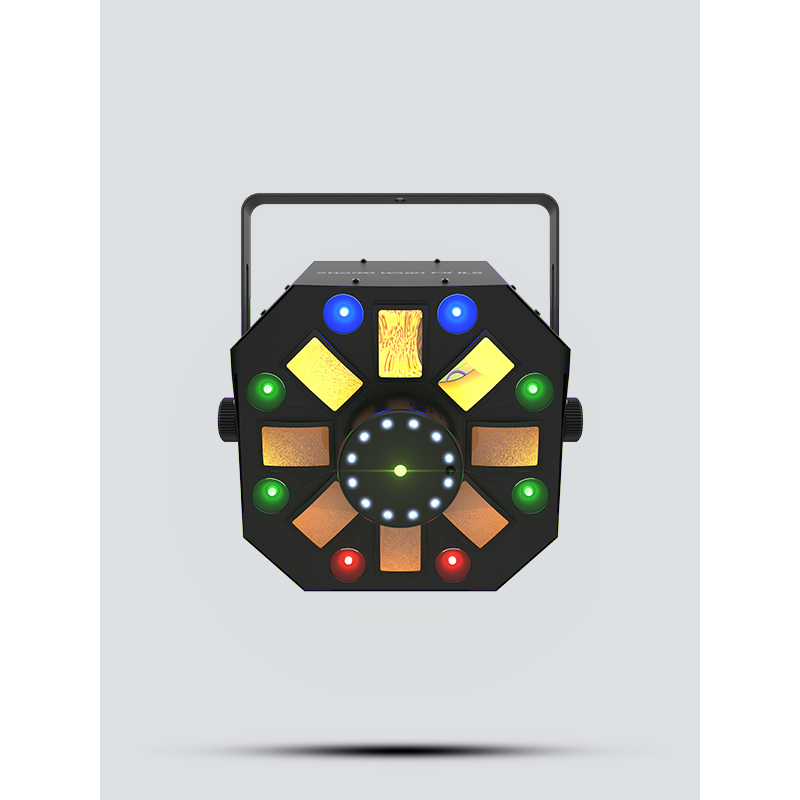

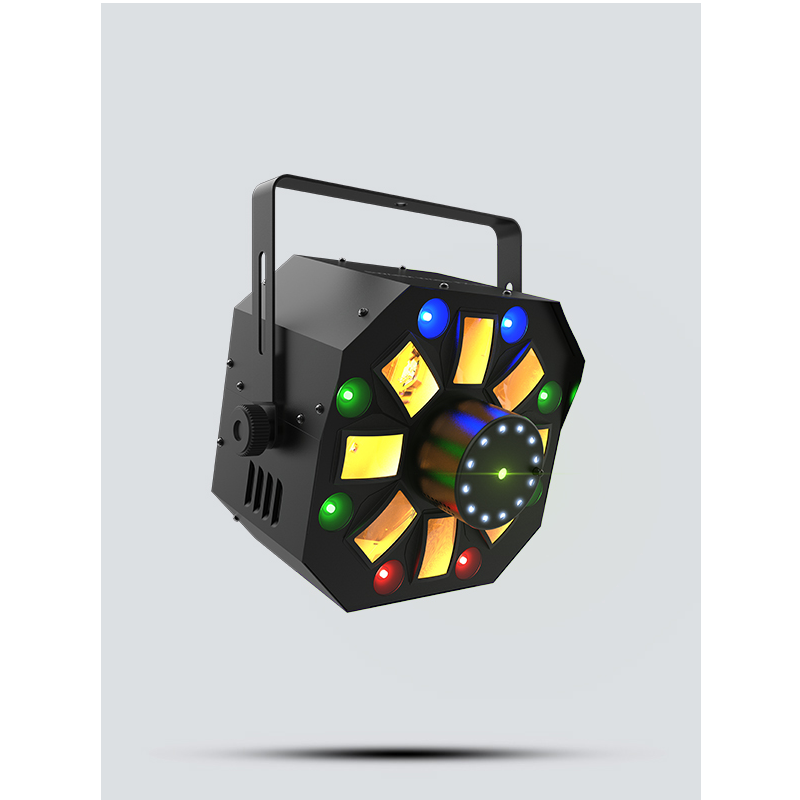

CHAUVET Swarm Wash FX ILS

4-in-1 LED light that combines an RGBAW rotating derby, RGB+UV wash, red/green laser, and a ring of white SMD strobes
ILS compatibility for use in the ILS ecosystem
D-Fi USB compatibility for wireless Master/Slave, or DMX control (D-Fi™ USB sold separately)
Access built-in automated programs via IRC6 remote, Master/Slave or DMX
Red and green laser beams project thousands of beams for maximum coverage
Generate complex looks easily with built-in, eye-catching automatic and sound- activated programs
Save time running extension cords by power linking multiple unit
Fits best inside the CHS-40 VIP gear bag

分類: Chauvet DJ, Chauvet DJ

Technical Specifications
Overview
Fixture Type	Professional Multi-Effect Laser, Strobe, Swarm & Wash LED Lighting Fixture
Light Source & Performance
Light Source	Wash Effect: 8 LEDs (quad-color RGB+UV), 1.5 W (600 mA), 50,000 hours life expectancy Strobe Effect: 12 LEDs (white), 1 W (300 mA), 50,000 hours life expectancy Laser Effect: 650 nm / 100 mW (red) laser diode, 520 nm / 30 mW (green) laser diode
Optics & Coverage	Coverage Angle (Laser): 82° Coverage Angle (Swarm): 65° Coverage Angle (Strobe): 71° Coverage Angle (Wash): 46°
Strobe Rate	0 to 20 Hz
Control & Connectivity
DMX Channels & Connectors	Channels: 2 or 18 Connectors: 3-pin XLR Optional Controllers: IRC-6
Electrical & Power
Input Voltage & Power	Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: 51 W, 0.7 A @ 120 V, 60 Hz; 50 W, 0.4 A @ 230 V, 50 Hz
Power Linking	11 units @ 120 V; 20 units @ 230 V
Physical & Certifications
Dimensions & Weight	Size: 13.1 x 13 x 9.4 in (335 x 332 x 241 mm) Weight: 9.5 lbs (4.3 kg)
Approvals	CE, FDA, RoHS, UKCA
