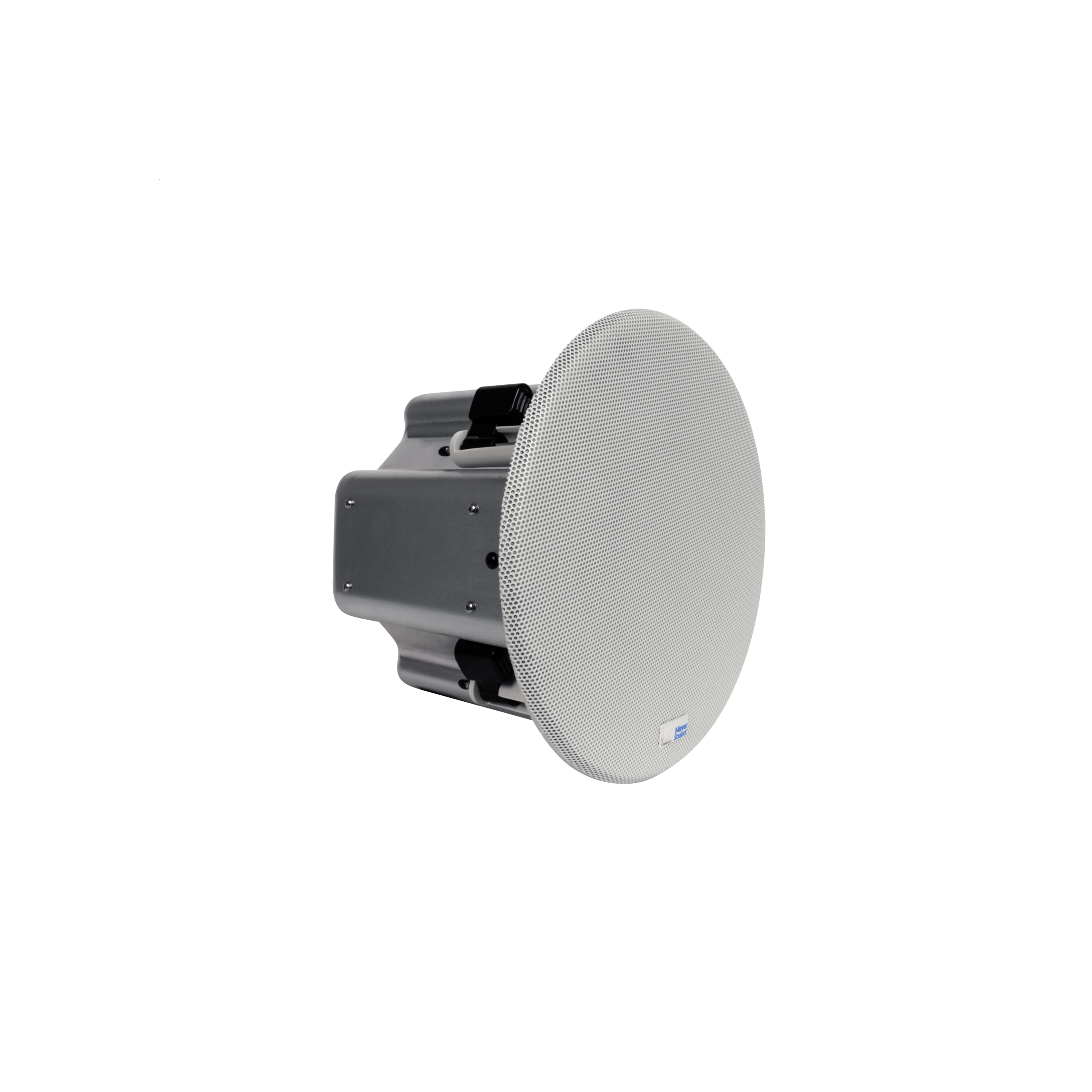

MEYER SOUND Ashby-5C Ceiling loudspeaker

The Ashby-5C self-powered, ceiling-mounted loudspeaker provides wide coverage and low distortion, even at high sound levels, for applications that require accurate music reproduction and intelligible voice. The Ashby-5C outperforms all in-ceiling loudspeakers of comparable size.

The Ashby-5C is engineered to the same award-winning standards as all Meyer Sound IntelligentDC loudspeakers. With on-board amplification and sophisticated signal processing, the Ashby-5C exhibits the flat frequency and phase response for which Meyer Sound loudspeakers are known.

Ashby drivers are designed and manufactured at the Meyer Sound factory in Berkeley, California. The 0.75-inch metal-dome tweeter is concentrically mounted over a 5-inch cone driver in an innovative configuration that maximizes the surface of the wave guide.

With an incredibly smooth, consistent 100° coverage, fewer loudspeakers can cover a larger area, reducing system cost while maintaining the highest sound quality.

The Ashby-5C requires an external MPS IntelligentDC power supply. These units distribute DC power and balanced audio to Ashby loudspeakers or other Meyer Sound IntelligentDC loudspeakers. Composite multi-conductor cables (e.g., Belden® 1502) can deliver both DC power and balanced audio from a single Phoenix™ 5-pin male connector.

The MPS-488HP can power up to 24 Ashby-5C loudspeakers (3 per channel) and can connect to Meyer Sound’s RMS remote monitoring system. The MPS-482HP can power up to 6 Ashby-5C loudspeakers. Using a Meyer Sound IntelligentDC external power supply source has several advantages including:

  • Eliminates the need to use conduit (NEC Class 2 wiring)
  • Allows longer, lighter-gauge cable runs
  • Preserves the advantages of self-powered systems with even more flexible installation options
Features and Benefits
  • Self-powered
  • Easy to install
  • Extremely wide and consistent coverage
  • Ultra low distortion
  • Exceptional SPL-to-size ratio
  • Beautiful reproduction of speech and music
  • Supports long cable runs with light-gauge cables
  • One MPS-488HP can power up to 24 Ashby-5Cs
Applications
  • Distributed systems for music and paging that demand high-quality audio and vocal intelligibility
  • Constellation acoustic systems
分類: ,

Specifications

ACOUSTICAL1
Operating Frequency Range1 100 Hz – 18 kHz
Frequency Response2 110 Hz – 16 kHz ± 4 dB
Phase Response 290 Hz – 16 kHz ±45°
Linear Peak SPL3 112 dB with 19 dB crest factor (M-noise), 104.5 dB (Pink Noise), 107.5 dB (B-noise)
COVERAGE
Coverage Angle 110° conical
TRANSDUCERS
Low Frequency One 5-inch cone driver
High Frequency One 0.75-inch dome tweeter mounted concentrically in wave guide
AUDIO INPUT
Type Differential, electronically balanced
Connectors Two Phoenix 5-pin male (one input and a hardwired loop output)
Input Impedance 10 kΩ differential between Audio (+) and Audio (–)
Wiring Pin 1: DC Power (–)
Pin 2: DC Power (+)
Pin 3: Audio Shield, Chassis/earth
Pin 4: Audio (–)
Pin 5: Audio (+)
Nominal Input Sensitivity -2.5 dBV (0.25 V rms) continuous average is typically the onset of limiting for noise and music where pink noise has 12 dB peak-to-RMS ratio
Input Level Audio source must be capable of producing of +16 dBV (6.3 V rms) into 600 Ω to produce the maximum peak SPL over the operating bandwidth of the loudspeaker.
AMPLIFIER
Type High-efficiency, Class-D
Total Output Power4 440 W peak
THD, IM, TIM <0.02%
Cooling Natural convection through metal enclosure
DC POWER
Connectors Two Phoenix 5-pin male provide power and audio connection (see Wiring above)
Safety Agency Rated Operating Range5,6 48 V DC—Meyer Sound MPS-482HP or MPS-488HP Power Supply required
(NEC Class 2 Wiring Approved)
CURRENT DRAW
Idle Current 0.16 A rms
Maximum Long-Term Continuous Current (>3 sec) 0.32 A rms
Maximum Instantaneous Peak Current 1.70 A peak
PHYSICAL
Outside Dimensions 8.92 in (226.5 mm) diameter; 7.17 in (182 mm) depth: front of ceiling surface to built-in safety attachment ring
Cutout Diameter Range 7.70 – 7.95 in (195.5 – 201.9 mm)
Weight 7.8 lb (3.53 kg)
Enclosure Zinc-plated steel-back can and UL 94 V-0 rated baffle
Grille Perforated steel 9.34 in (237.3 mm) in diameter
Mounting Options C-Ring with bridge kit, new construction bracket, and pendant mount
COMPLIANCE
Safety Agency Certification Standard for audio, video and similar electronic apparatus:
UL 60065, CSA C22.2 NO. 60065-03 (AMD 2), IEC 60065, IEC 62368-1Fire Rated to UL Standard 2043, Product and Accessories Installed in Air-Handling Spaces
EMC Certification CE and FCC Part 15 Emission Class B emission limits applied.
