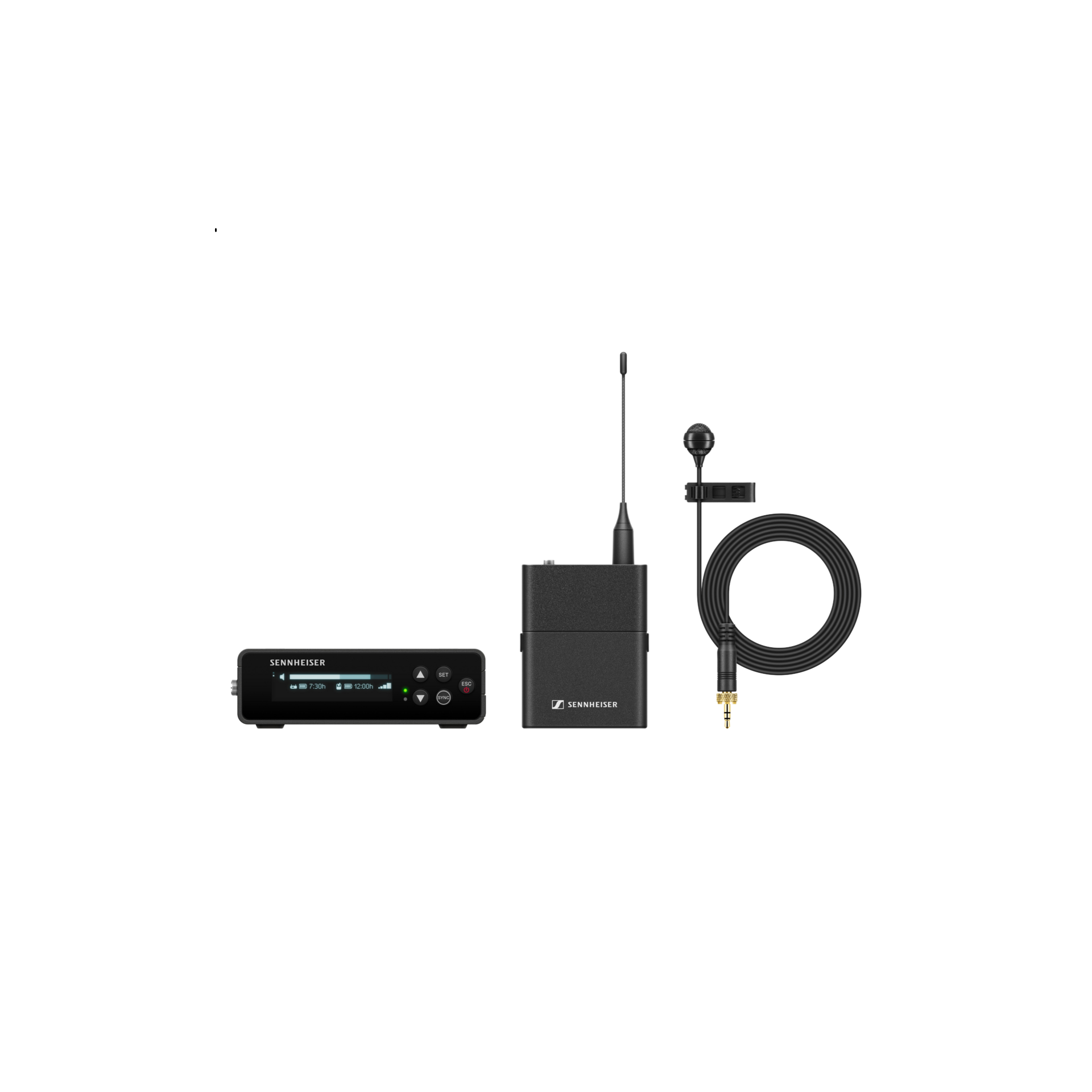

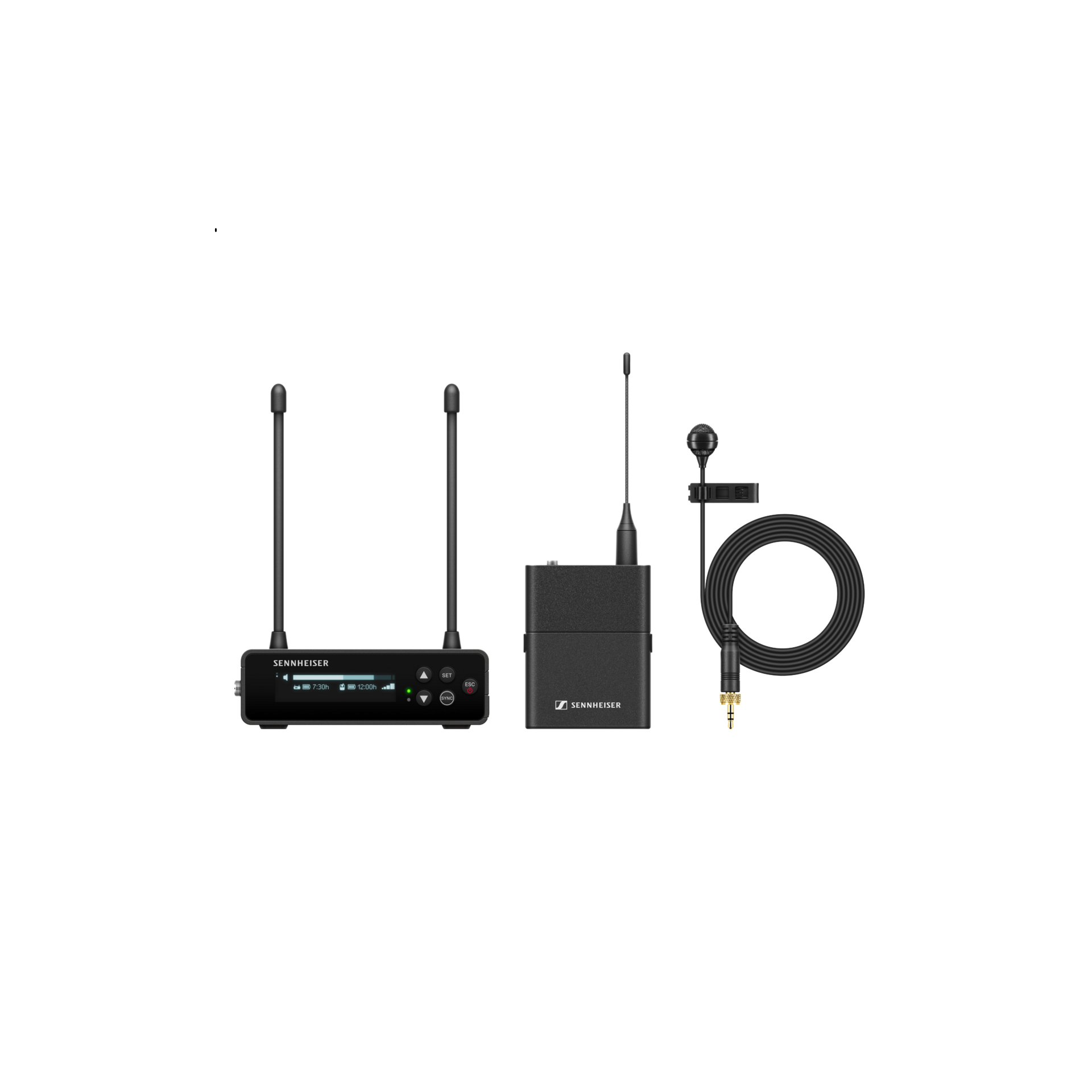

Specifications
| GLOBAL SYSTEM SPECIFICATIONS | |
| Audio Link Frequency Ranges |
• Q1-6: 470.2 – 526 MHz • R1-6: 520 – 576 MHz • R4-9: 552 – 607.8 MHz • S1-7: 606.2 – 662 MHz • S4-7: 630 – 662 MHz • S7-10: 662 – 693.8 MHz • U1/5: 823.2 – 831.8 MHz & 863.2 – 864.8 MHz • V3-4: 925.2 – 937.3 MHz • Y1-3: 1785.2 – 1799.8 MHz |
| Bluetooth Frequency Range | 2402 – 2480 MHz (Bluetooth® Low Energy) |
| Audio Frequency Response | 20 Hz – 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
| Dynamic Range & Latency |
• Dynamic Range: 134 dB • System Latency: 1.9 ms |
| Environmental Conditions |
• Operating Temperature: -10 °C – +55 °C (14 °F – 131 °F) • Relative Humidity: 5 – 95 % (non-condensing) |
| RECEIVER SPECIFICATIONS | |
| Input Voltage & Current |
• Input Voltage: ~ 1.8 – 4.35 V • Input Current (BA 70): Typ. < 250 mA / Max. < 400 mA • Input Current (2x AA): Typ. < 400 mA / Max. < 750 mA • Input Current (USB-C Standalone): < 300 mA @ 5 V |
| Power Supply Options |
2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.): • 5V / 1500mA • 9V / 900mA • 12V / 700mA |
| Wireless & Audio Output Power |
• Transmit Power (BLE): max. 10 mW EIRP • Audio Output Power: < 2 dBV max. (high level) / < 4 dBU max (high level) |
| Headphone Output | < 50 mW into 16 Ohms |
| Dimensions & Weight (Receiver) |
• Dimensions: 86 x 67 x 28 mm (3.39″ x 2.64″ x 1.1″) • Weight (without antennas and power supply): approx. 140g (0.31 lbs) |
| BODYPACK TRANSMITTER SPECIFICATIONS | |
| Input Voltage & Current |
• Input Voltage: 2.0 – 4.35 V • Input Current: < 300 mA |
| Power Supply & Bandwidth |
• Power Supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack • Occupied Bandwidth: 200 kHz |
| Transmit Power (Radiated) |
• Audio Link: 10 mW ERP (Range Y1-3: 12 mW ERP) • BLE: max. 10 mW EIRP |
| Dimensions & Weight (Transmitter) |
• Dimensions (without antenna): 63 x 80 x 20 mm (2.48″ x 3.15″ x 0.79″) • Weight (without batteries): approx. 120 g (0.26 lbs) |
| LAVALIER MICROPHONE SPECIFICATIONS | |
| Transducer Principle & Pick-up Pattern |
• Transducer Principle: Pre-polarized condenser microphone • Pick-up Pattern: Cardioid |
| Sensitivity & Frequency Response |
• Sensitivity (free field, no load at 1 kHz): 40 mV/Pa • Frequency Response: 50 to 18,000 Hz |
| Max. SPL & Noise Level |
• Max. SPL at 1 kHz: 120 dB • Equivalent Noise Level (A-weighted): 31 dB |
| Connector & Physical Properties |
• Connector: 3.5 mm jack • Cable Length: approx. 1.60 m (62.99″) • Supply Voltage: 7.5 V |
