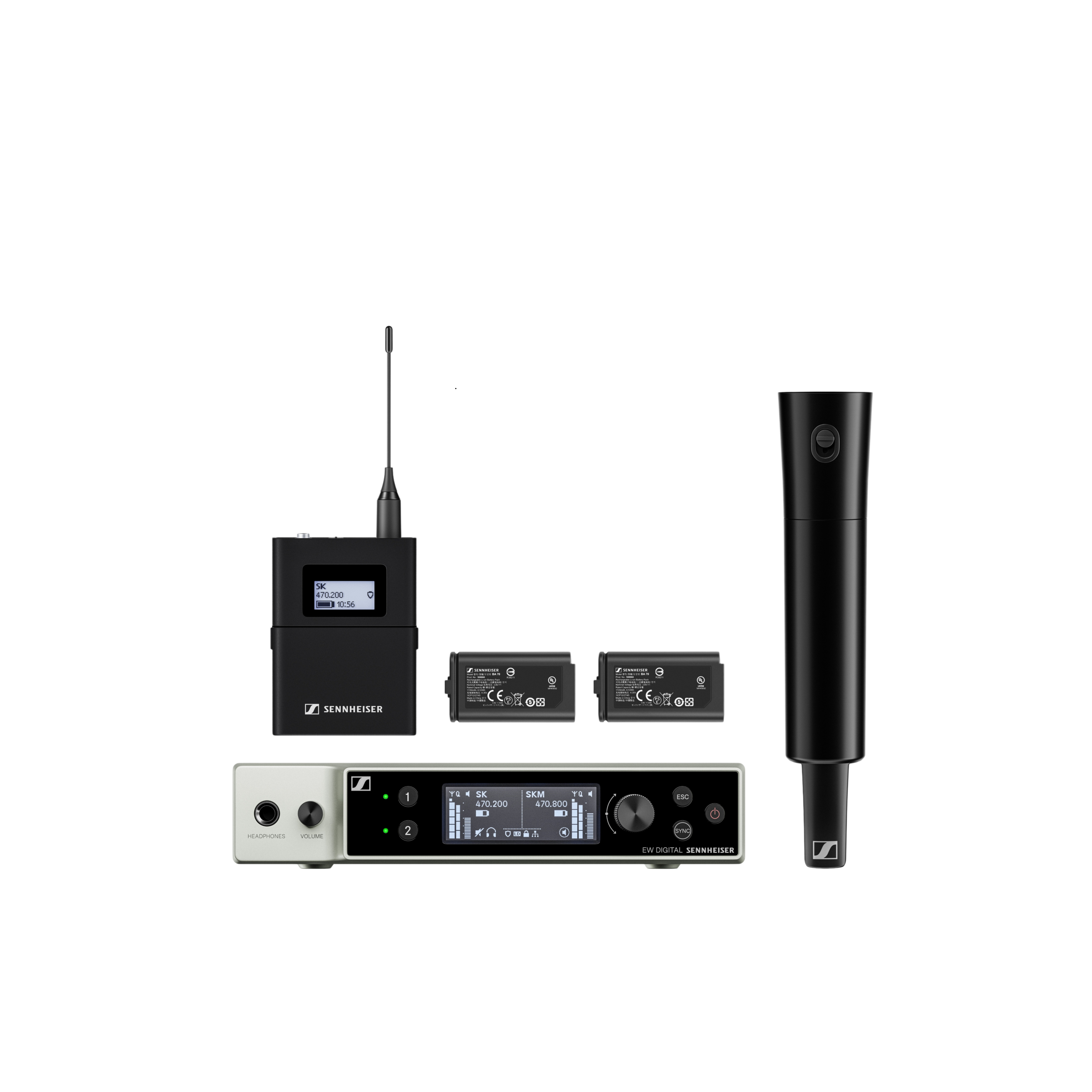

SENNHEISER EW-DX SK-SKM-S BASE SET Combo Base Set

<div class=”specs-container”>
<style>
.specs-container {
-webkit-user-select: none !important;
-moz-user-select: none !important;
-ms-user-select: none !important;
user-select: none !important;
}
</style>

<h2 class=”specs-title”>Specifications</h2>

<table class=”specs-table”>
<tbody>
<tr class=”category-row”>
<td colspan=”2″>GLOBAL SYSTEM SPECIFICATIONS</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Audio Link Frequency Ranges</td>
<td class=”param-value”>
• Q1-9: 470.2 – 550 MHz<br>
• R1-9: 520 – 607.8 MHz<br>
• S1-10: 606.2 – 693.8 MHz<br>
• S2-10: 614.2 – 693.8 MHz<br>
• S4-10: 630 – 693.8 MHz<br>
• U1/5: 823.2 – 831.8 MHz &amp; 863.2 – 864.8 MHz<br>
• V3-4: 925.2 – 937.3 MHz<br>
• V5-7: 941.7 – 951.8 MHz &amp; 953.05 – 956.05 MHz &amp; 956.65 – 959.65 MHz<br>
• Y1-3: 1785.2 – 1799.8 MHz
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Bluetooth Frequency Range</td>
<td class=”param-value”>2402 – 2480 MHz (Bluetooth® Low Energy)</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Audio Performance</td>
<td class=”param-value”>
• Audio Frequency Response: 20 Hz – 20 kHz (-3 dB) @ 3 dBfs<br>
• Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level<br>
• Dynamic Range: 134 dB<br>
• System Latency: 1.9 ms
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Environmental Conditions</td>
<td class=”param-value”>
• Operating Temperature: -10 °C – +55 °C (14 °F – 131 °F)<br>
• Relative Humidity: 5 – 95 % (non-condensing)
</td>
</tr>

<tr class=”category-row”>
<td colspan=”2″>EW-DX EM 2 (RACK RECEIVER) SPECIFICATIONS</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Input Voltage &amp; Current</td>
<td class=”param-value”>
• Input Voltage: 11 – 13 V DC or PoE IEEE 802.3af Class 0 (CAT5e or higher)<br>
• Input Current: ≤ 1 A
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Wireless &amp; Audio Power</td>
<td class=”param-value”>
• Transmit Power (BLE): max. 10 mW EIRP<br>
• Audio Output Power: 18 dBu max.<br>
• Headphone Output: 2x 70 mW @ 32 Ω
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Ethernet Interface</td>
<td class=”param-value”>
RJ-45 socket, IEEE802.3 (CAT5e or higher)<br>
• 100Base-TX (half+full duplex)<br>
• 10Base-T (half+full duplex)
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Dimensions &amp; Weight</td>
<td class=”param-value”>
• Dimensions: 212 x 44 x 189 mm (8.35″ x 1.73″ x 7.44″)<br>
• Weight: approx. 1000 g (2.2 lbs) without antennas and power supply
</td>
</tr>

<tr class=”category-row”>
<td colspan=”2″>EW-DX SKM-S (HANDHELD TRANSMITTER) SPECIFICATIONS</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Electrical &amp; Wireless</td>
<td class=”param-value”>
• Input Voltage: 2.0 – 4.35 V<br>
• Input Current: &lt; 300 mA<br>
• Power Supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack<br>
• Occupied Bandwidth: 200 kHz
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Transmit Power (Radiated)</td>
<td class=”param-value”>
• Audio Link: 10 mW ERP (Range Y1-3: 12 mW ERP)<br>
• LD Mode: 10 mW ERP<br>
• BLE: max. 10 mW EIRP
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Dimensions (ø x l)</td>
<td class=”param-value”>
• Incl. MMD 835 microphone module: 50 x 268 mm (1.97″ x 10.55″)<br>
• Without microphone module: 40 x 200 mm (1.57″ x 7.87″)
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Weight (without batteries)</td>
<td class=”param-value”>
• Incl. MMD 835 microphone module: approx. 304 g (0.67 lbs)<br>
• Without microphone module: approx. 195 g (7.14 lbs)
</td>
</tr>

<tr class=”category-row”>
<td colspan=”2″>EW-DX SK (BODYPACK TRANSMITTER) SPECIFICATIONS</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Electrical &amp; Wireless</td>
<td class=”param-value”>
• Input Voltage: 2.0 – 4.35 V<br>
• Input Current: &lt; 300 mA<br>
• Power Supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack<br>
• Occupied Bandwidth: 200 kHz
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Transmit Power (Radiated)</td>
<td class=”param-value”>
• Audio Link: 10 mW ERP (Range Y1-3: 12 mW ERP)<br>
• LD Mode: 10 mW ERP<br>
• BLE: max. 10 mW EIRP
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Dimensions &amp; Weight</td>
<td class=”param-value”>
• Dimensions (without antenna): 63.5 x 85 x 20 mm (2.5″ x 3.35″ x 0.79″)<br>
• Weight (without batteries): approx. 115-120 g (0.26-0.27 lbs)
</td>
</tr>
</tbody>
</table>
