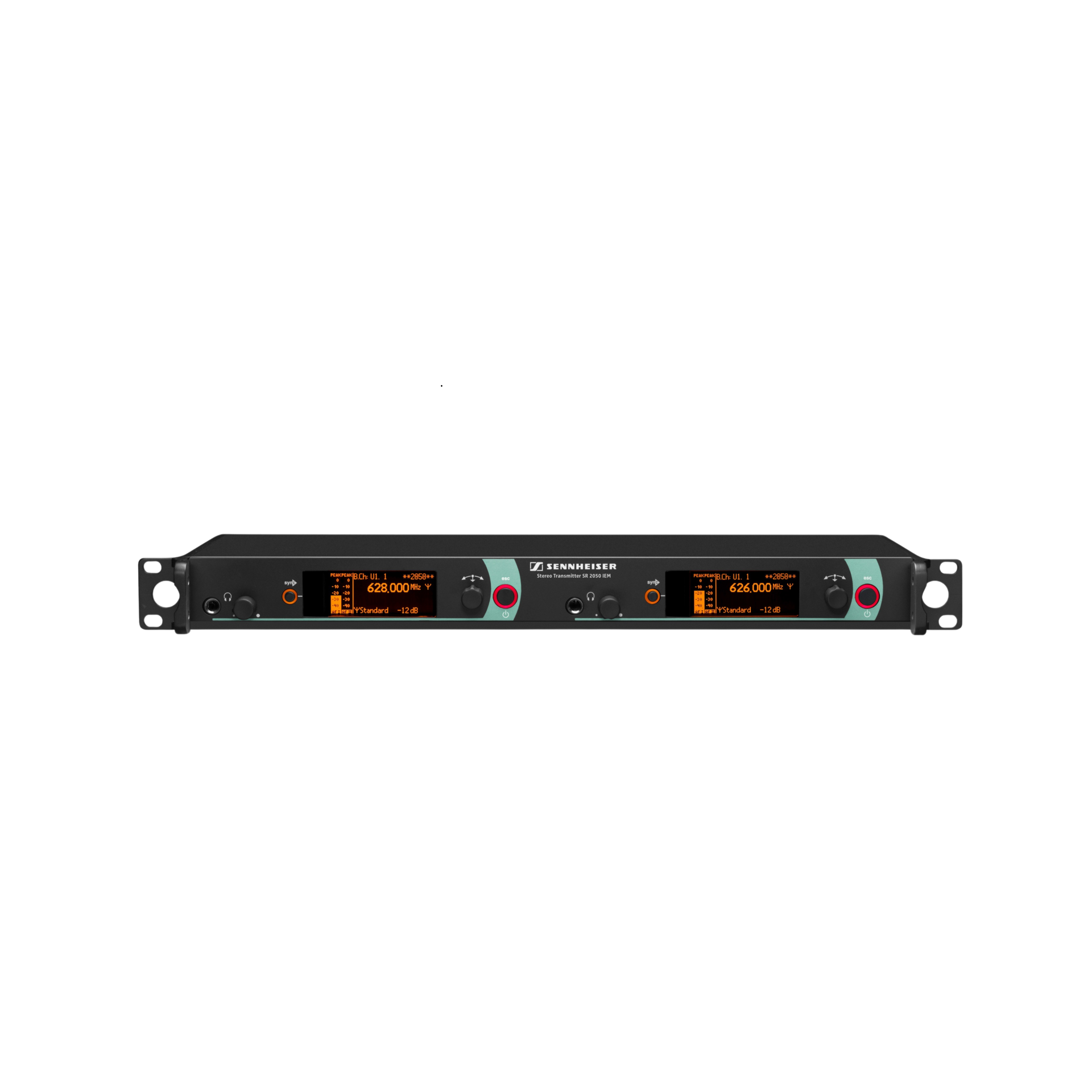

Specifications
| RF CHARACTERISTICS | |
| Modulation | Wideband FM stereo (MPX pilot tone) |
| Frequency Ranges | • Aw+: 470 – 558 MHz • Gw: 558 – 626 MHz • Gw1: 558 – 608 MHz • GBw: 606 – 678 MHz • Bw: 626 – 698 MHz |
| Transmitting Frequencies | • Max. 3000 frequencies, adjustable in 25 kHz steps • 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation • 6 frequency banks with up to 32 programmable channels |
| Switching Bandwidth & Deviation | • Switching Bandwidth: up to 75 MHz • Nominal/Peak Deviation: ±24 kHz / ±48 kHz • MPX Pilot Tone (Frequency/Deviation): 19 kHz / ±5 kHz |
| Frequency Stability | ±10 ppm |
| Antenna Output | BNC socket, 50 Ω |
| RF Output Power (at 50 Ω) | Switchable: • Low: 10 mW • Standard: 30 mW • High: 50 mW • Maximum: 100 mW (XP versions only) |
| AF CHARACTERISTICS | |
| Compander System | Sennheiser HDX |
| Audio Performance | • AF Frequency Response: 25 Hz to 15 kHz • Total Harmonic Distortion (THD): <0.9 % • Signal-to-Noise Ratio: >90 dB (at nominal load and peak deviation) |
| AF Input | • Connectors: 2x XLR-3 / 1/4″ (6.3 mm) jack combo socket, electronically balanced (BAL AF IN L (I) / BAL AF IN R (II)) • Max. Input Level: +22 dBu |
| AF Output | 1/4″ (6.3 mm) stereo jack socket, balanced (LOOP OUT BAL L (I) / LOOP OUT BAL R (II)) |
| OVERALL DEVICE SPECIFICATIONS | |
| Power Supply | • Voltage: 100 – 240 V AC • Current Consumption: 0.2 A |
| Physical Parameters | • Dimensions: Approx. 217 x 483 x 43 mm (8.54″ x 19.02″ x 1.69″) • Weight: Approx. 2,700 g (5.95 lbs) |
| Temperature Range | -10 °C to +55 °C (14 °F to 131 °F) |
