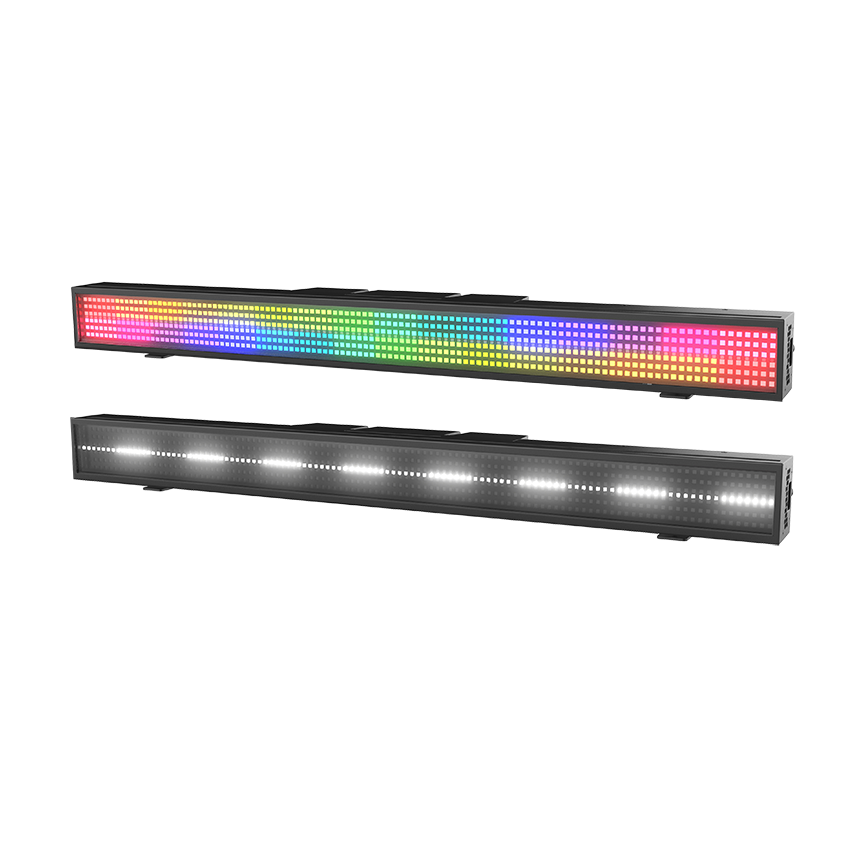

ACME PIXEL LINE IP

The ACME PIXEL LINE IP strip light is like no other. Its small size and weight, IP66 rating for indoor and outdoor use, and uniform colors and effects make this fixture extremely versatile for any application.

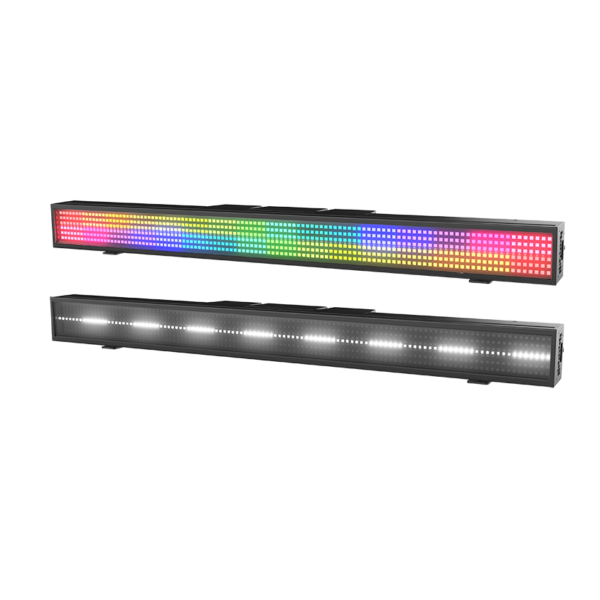

The PIXEL LINE IP is powered with 672 RGB LEDs and 112 cool white LEDs with the RGBW LEDs divided into 32 sections and the white LEDs into 16 sections. The unit is equipped with ACME’s patented Smart Glass Technology for unprecedented, frosted looks. The white LEDs deliver bright strobe effects and are integrated in such a way to complement the color LED sections.

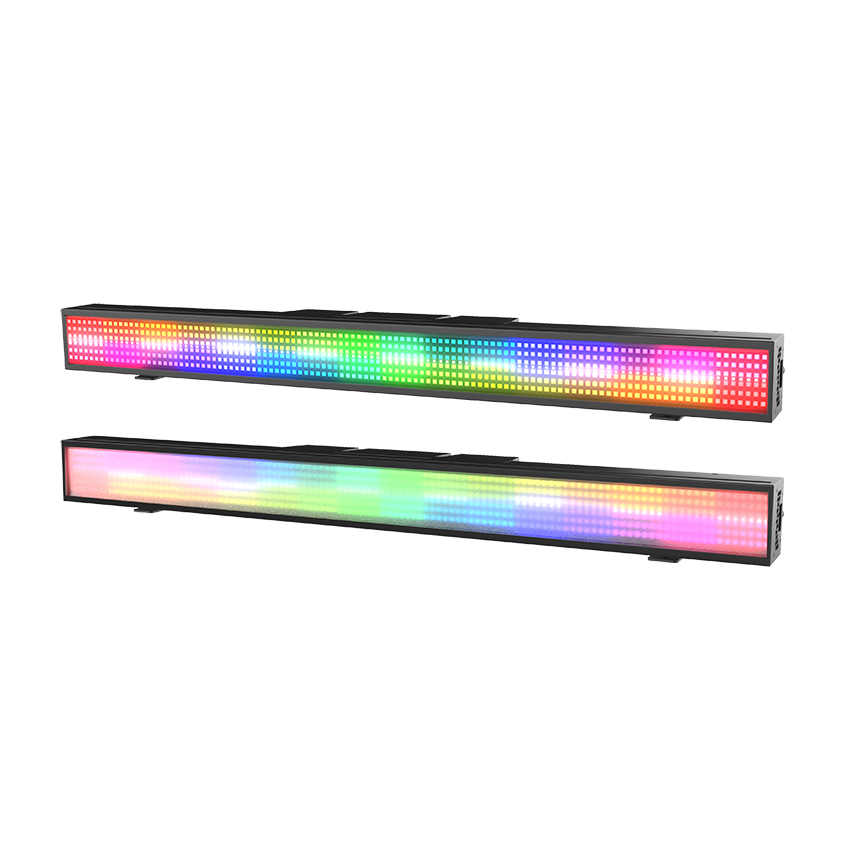

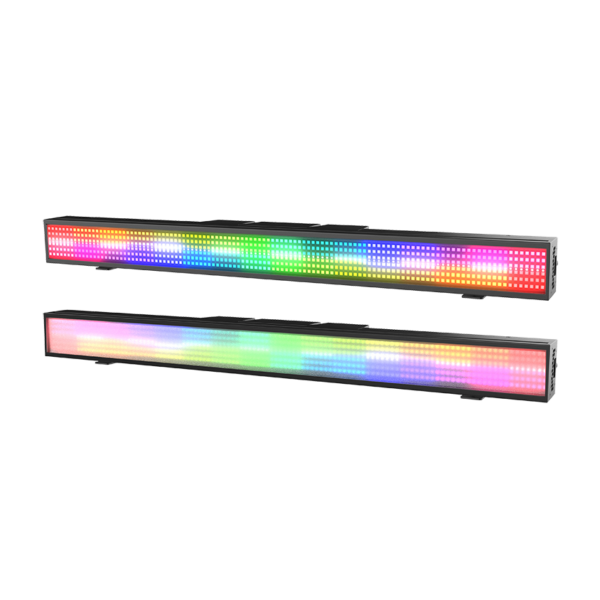

The fixture offers ten DMX control modes from simple operation to intense, eye-catching individual pixel control effects. The PIXEL LINE IP also offers preprogrammed effects macros and colors for time-saving programming. Incorporating ACME’s Smart Glass Technology allows the unit to switch from its normal strip light mode to soft light mode without adding an external frost filter, making the unit more flexible during your production.

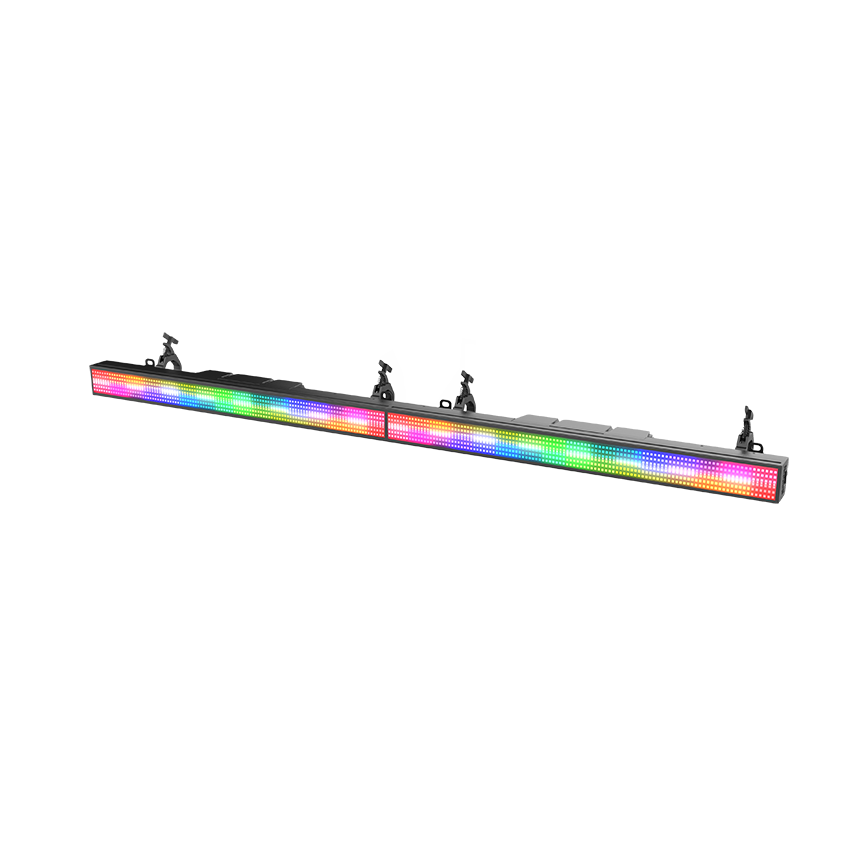

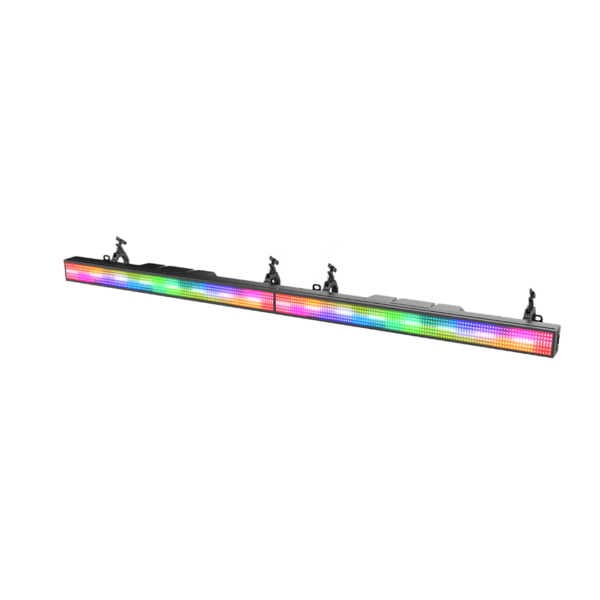

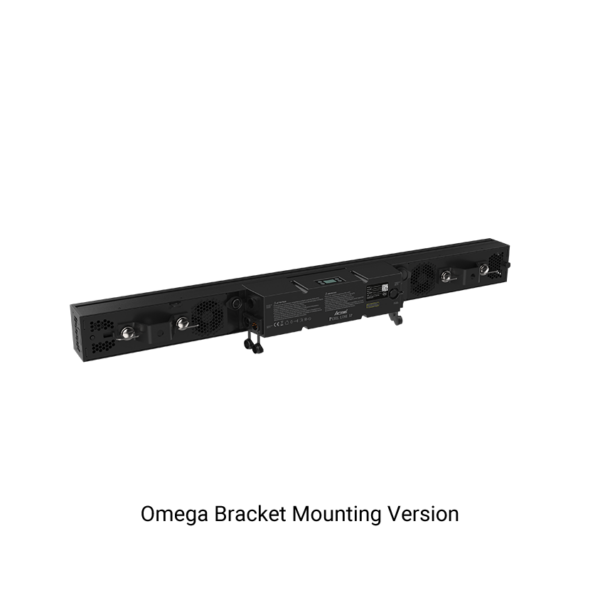

The PIXEL LINE IP can be mounted in any orientation from the floor to hanging in truss and features a tool-less connection system for quick side-by-side joining. The PIXEL LINE IP is a powerful, all-weather fixture that redefines what a strip light can be.

分類: Acme Lighting, Acme Lighting

描述

Technical Specifications
Versions & Light Source
Versions	Version 1: STROBE 3 IP (Omega Bracket Mounting) Version 2: STROBE 3 IPS (Sliding Adjustable Clamp) Note: Different versions cannot be connected together.
Light Source	672 x 0.5W RGB LEDs (32 controllable sections) 112 x 3W CW LEDs (16 controllable sections) Rated Life: 30,000 hours (manufacturer spec)
Color Temp Output	7,000K–7,500K
Photometric Data & Optics
Total Lumen Output	21,900 lm
Beam Angles	RGB: 101° \| CW: 108°
Field Angles	RGB: 149° \| CW: 152°
Smart Glass & Patents	DMX Controllable Smart Glass technology Patents: CN216010577U, US11698183B1, DE202023101966U1, FR3134870B3
Performance Features
Effects & Dimming	Variable speed strobe effect, smooth 0–100% dimming (4 user-selectable dimming curves), outstanding color effects
Control & Electrical
Control Protocols & Channels	DMX512, RDM, Art-Net, sACN 14 DMX Protocol Modes / Channels: 7 / 15 / 17 / 21 / 33 / 39 / 65 / 68 / 70 / 70N / 112 / 117 / 119 / 125
Display & Firmware	4-touch button control panel with OLED display; firmware upgrade via DMX link
Input Voltage & Power	100–240 Vac, 50/60 Hz \| Power Consumption: 420 W
Connectors	Power: Waterproof power connector in/out (on-request customized direct cord version available) Data: 3-pin or 5-pin waterproof XLR, RJ45 connector
Physical, Packaging & Environment
Fixture Dimensions & Weight	Omega Bracket Version: 1,000 x 90 x 124 mm (39.4″ x 3.5″ x 4.9″) \| Weight: 7.3 kg (16.1 lbs) Sliding Adjustable Clamp Version: 1,000 x 192 x 237 mm (39.4″ x 7.6″ x 9.3″) \| Weight: 8.3 kg (18.3 lbs)
Packaging Options	Carton (One-pack): 1,085 x 195 x 320 mm (42.7″ x 7.7″ x 12.6″) \| G.W.: 10.5 kg (23.0 lbs) Flight Case 1 (Standard Eight-pack): 1,196 x 580 x 750 mm (47.1″ x 22.8″ x 29.5″) \| G.W.: 126.5 kg (278.9 lbs) Flight Case 2 (Standard Eight-pack): 1,209 x 565 x 655 mm (47.6″ x 22.2″ x 25.8″) \| G.W.: 115.0 kg (253.5 lbs) Flight Case 3 (North American Eight-pack): 1,220 x 610 x 830 mm (48.0″ x 24.0″ x 32.7″) \| G.W.: 138.2 kg (304.7 lbs)
Operating Environment	Ambient Temp: -10°C to 40°C \| Max Surface Temp: 65°C Protection Rating: IP66 \| IP Class Test Verification
Approvals	CE compliant, cETLus compliant
Installation & Rigging	Horizontal or vertical mounting, universal working position, safety cable point, 2x omega brackets included
Included Items	Digital user manual, power cable, 2x omega brackets (3002003002)
