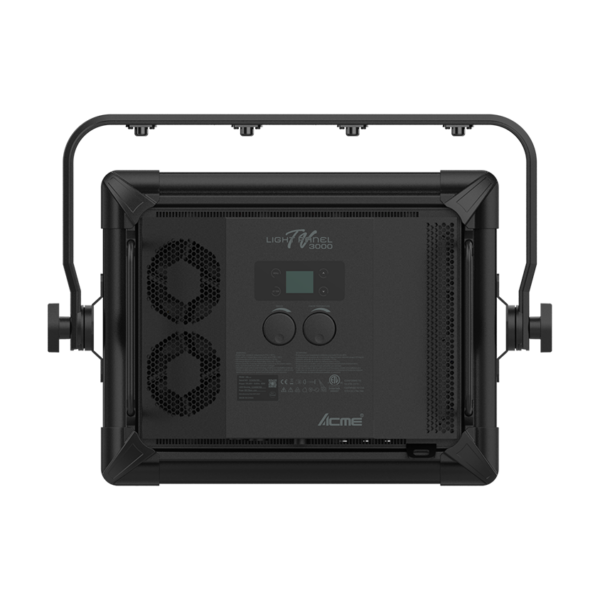

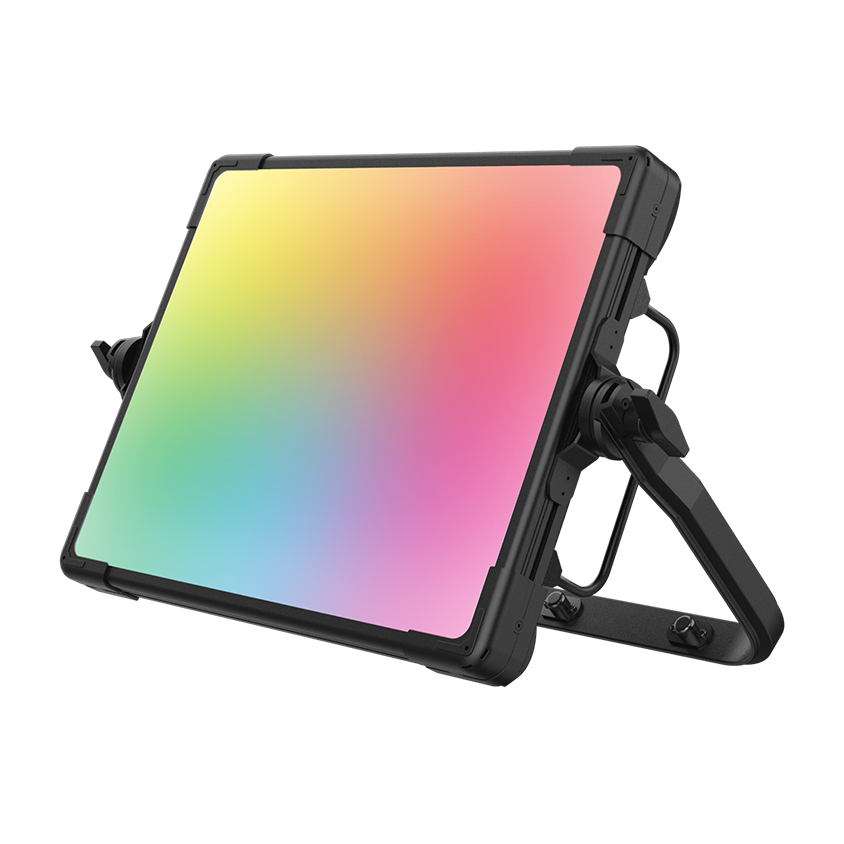

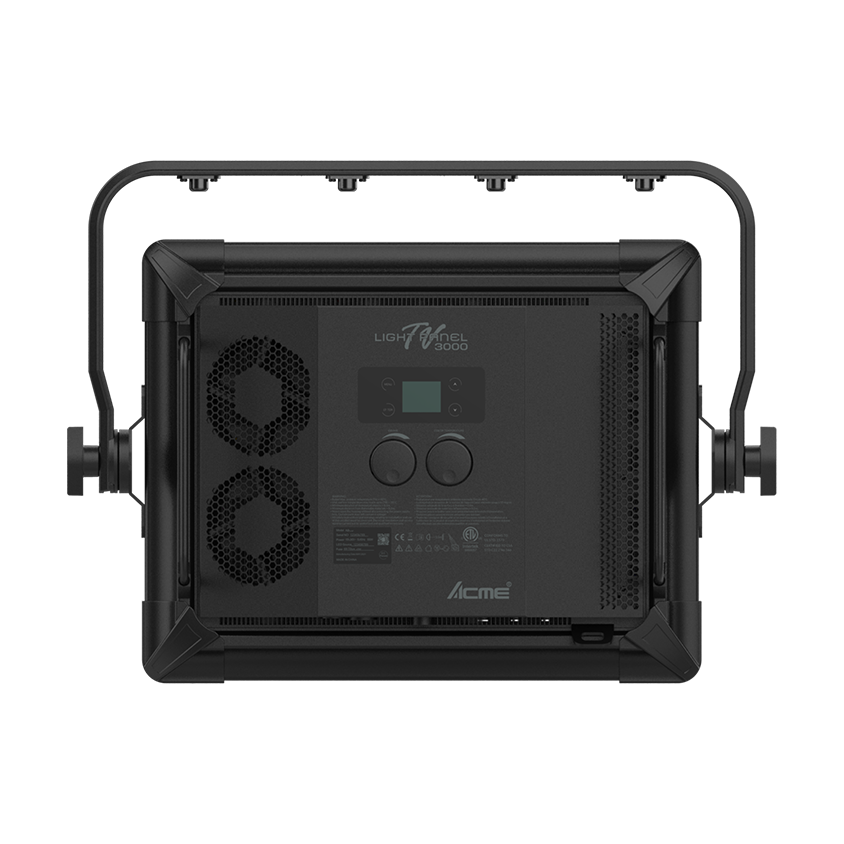

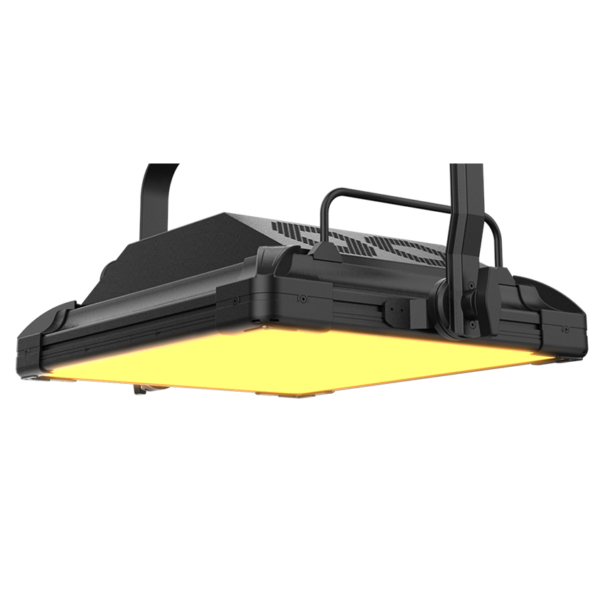

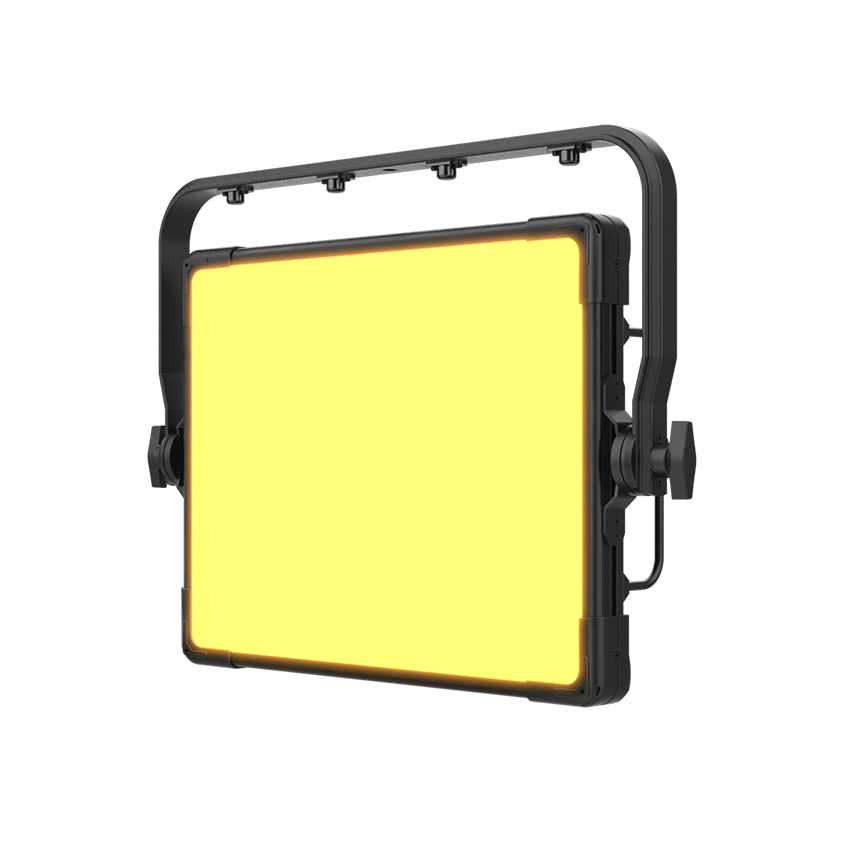

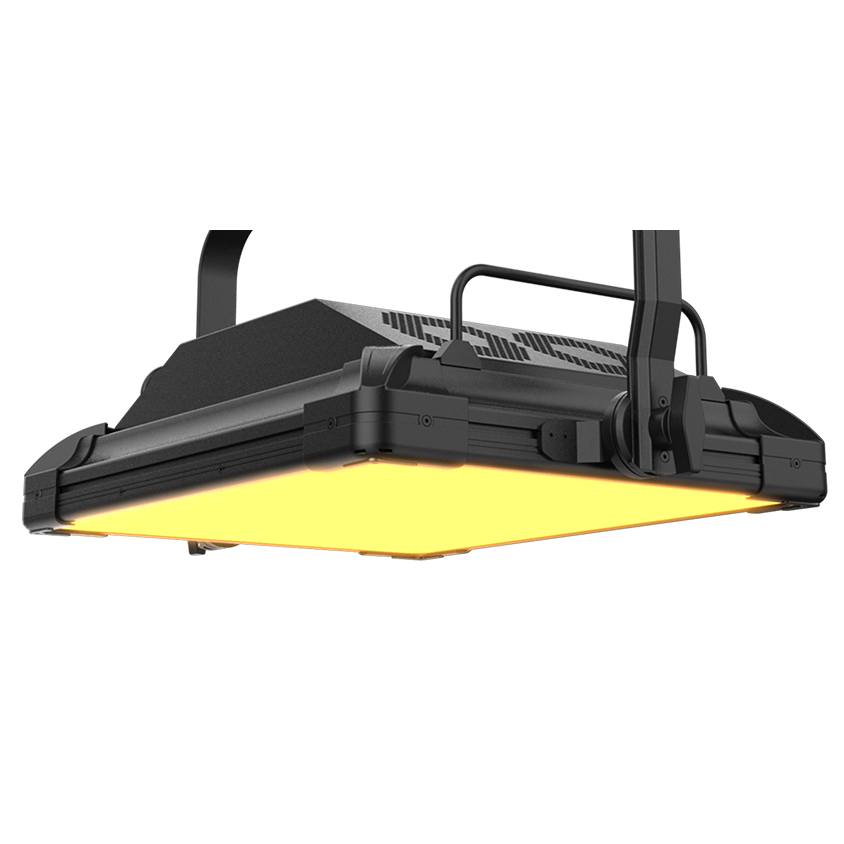

ACME TV LIGHT PANEL 300

Overview

TV LIGHT PANEL 3000, ACME’s latest television soft light, offers a durable lighting experience with 50,000 hours ultra-long life expectancy. Powered by 336 pcs 2.5W RGB LEDs and 336 pcs 3W WW LEDs, it boasts a color rendering index greater than 95 for excellent color accuracy and color reproduction.

The fixture features an outstanding RGBW mixing system and adjustable Magenta/Green CCI, providing different lighting atmospheres for various scenes. With its advanced silent technology, the TV LIGHT PANEL 3000 can operate below 34.1dB at maximum brightness. Featuring a built-in manual dimming knob for flicker-free output, it is perfect for high-production scenes.

The lightweight TV LIGHT PANEL 3000 continues to work even during power interruptions after assembling the external battery, making it the optimal choice for broadcasting halls, theaters, and stage productions.

分類: Acme Lighting, Acme Lighting

描述

Technical Specifications
Light Source & Photometric Data
Light Source	336 x 2.5W RGB LED + 336 x 3W WW LED (50,000 hours rated life)
Total Lumen Output	39,000 lm
Color Rendering Performance	RA > 95 \| R9 ≥ 95 \| TLCI ≥ 92
Optical System
Beam & Field Angles	Beam Angle: 110° Field Angle: 160°
Performance Features & Color Control
Color Mixing & Control	Excellent RGBW color mixing, ± Green/Magenta adjustment, manual CTO controls, soft light effect Divided into 6 controllable zones
Strobe & Dimming	Variable speed strobe, smooth 0–100% dimming (4 user-selectable dimming curves), manual dimming controls
Acoustics & Broadcast	3 Silent Modes: Standard (<34.1 dB), Silent (<30.8 dB), Fan-off (Ambient Noise Only) Flicker-Free: Frequency adjustable up to 25 kHz for demanding production environments
Control & Electrical
Control Protocols & Channels	DMX512, RDM, Art-Net, sACN (2 DMX modes: 10 / 28 Channels) \| DMX & Manual Control
Display & Firmware	LCD display; firmware upgrade via DMX link or USB stick
Input Voltage & Power	100–240 Vac, 50/60 Hz \| Power Consumption: 455 W
Connectors	Power: Power connector in/out, DC 48V battery connector (battery not supplied) Data: 3-pin or 5-pin XLR, RJ45 connector
Physical, Packaging & Environment
Fixture Dimensions & Weight	668 x 149 x 492 mm (26.3″ x 5.9″ x 19.4″) \| Weight: 12.0 kg (26.5 lbs)
Packaging Options	Carton (One-pack): 755 x 570 x 330 mm (29.7″ x 22.4″ x 13.0″) \| G.W.: 19.0 kg (41.9 lbs)
Operating Environment	Ambient Temp: -20°C to 45°C \| Max Surface Temp: 55°C Protection Rating: IP20
Approvals	CE compliant, UKCA compliant, cETLus compliant
Installation & Included Items	Horizontal or vertical mounting, universal working position (hanger with 2 pairs of 1/4-turn locking points and 1 locking hole, 2x omega brackets [3002003928], safety cable point, barndoor [63581220], power cable, digital manual)
