SENNHEISER EW-DX 835-S SET Handheld Set

Perfect for Presenters and Singers

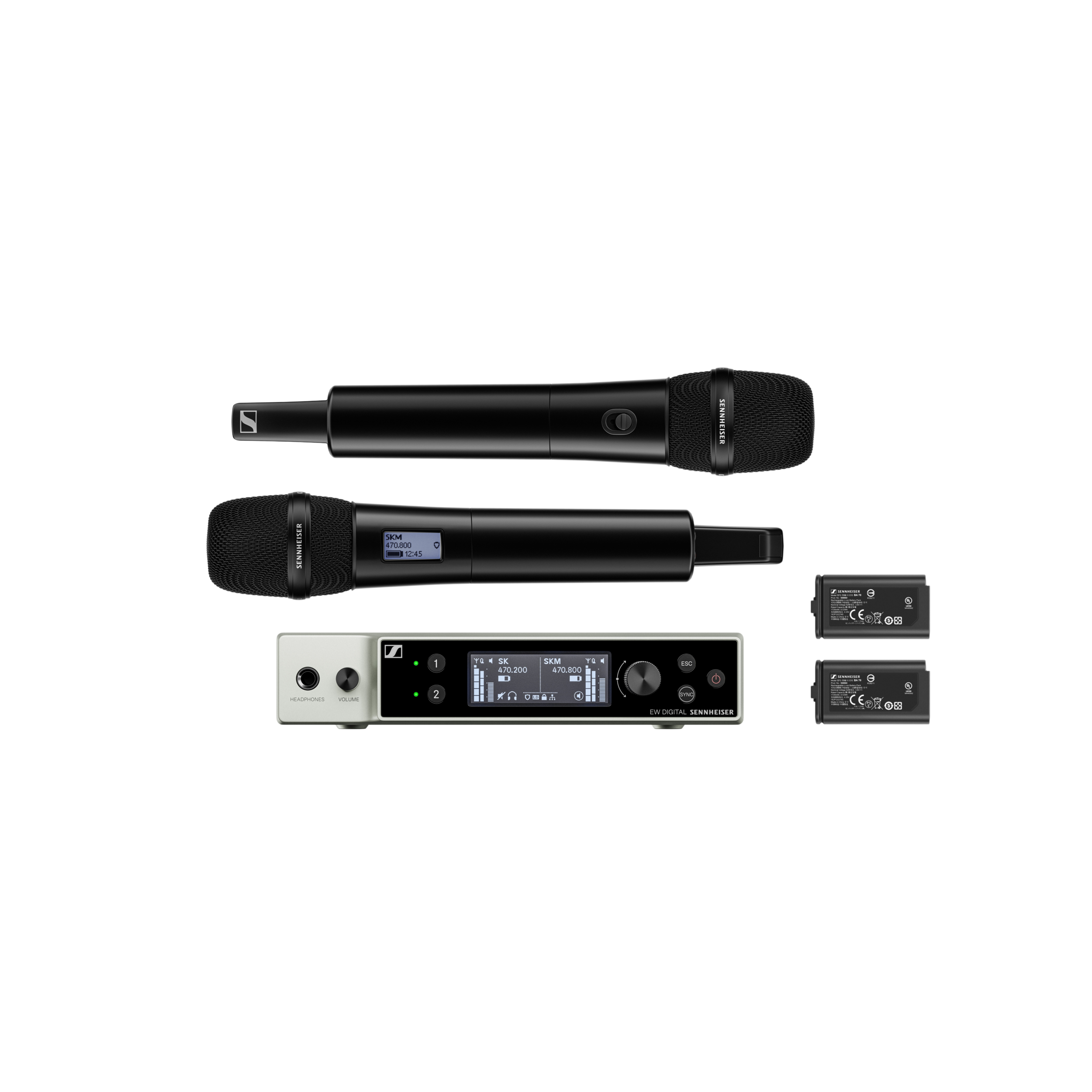

This set consists of 2 x EW-DX SKM-S (handheld with mute switch), 2 x MMD 835 capsule (cardioid, dynamic), 1 x EW-DX EM 2 rackmout receiver (2 channels) and 2 x BA 70 rechargeable batteries.

FEATURES EW-DX EM 2
• 2 channel half rack (9.5′)
• Up to 88 MHz switching bandwidth
• PoE IEEE 802.3af Class 0
• Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
• Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
• Clear and easy focused user interface with OLED display
• Ethernet connectivity (IPv4 and IPv6)
• Secure AES 256 encryption
• External PSU 12V/1A
• All-metal housing

FEATURES EW-DX SKM-S
• 10 mW RF power with up to 100 m/328 ft working range
• Charging contacts for in-device charging with CHG 70N-C
• Persistent eInk display – parameters visible on screen even when device is not powered on
• Programmable mute switch on EW-DX SKM-S – customize the device depending on your professional needs
• Function buttons – control all the transmitter settings directly from handheld microphone
• Extended runtime with lithium-ion batteries – up to 12 hours operation time
• Standard capsule interface – compatible with a wide range of Sennheiser and Neumann capsules
• Mic input trim control
• Metal housing

分類: Sennheiser, Sennheiser

描述

Specifications

GLOBAL SYSTEM SPECIFICATIONS
Audio Link Frequency Ranges	• Q1-9: 470.2 – 550 MHz • R1-9: 520 – 607.8 MHz • S1-10: 606.2 – 693.8 MHz • S2-10: 614.2 – 693.8 MHz • S4-10: 630 – 693.8 MHz • U1/5: 823.2 – 831.8 MHz & 863.2 – 864.8 MHz • V3-4: 925.2 – 937.3 MHz • V5-7: 941.7 – 951.8 MHz & 953.05 – 956.05 MHz & 956.65 – 959.65 MHz • Y1-3: 1785.2 – 1799.8 MHz
Bluetooth Frequency Range	2402 – 2480 MHz (Bluetooth® Low Energy)
Audio Performance	• Audio Frequency Response: 20 Hz – 20 kHz (-3 dB) @ 3 dBfs • Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level • Dynamic Range: 134 dB • System Latency: 1.9 ms
Environmental Conditions	• Operating Temperature: -10 °C – +55 °C (14 °F – 131 °F) • Relative Humidity: 5 – 95 % (non-condensing)
EW-DX EM 2 (RACK RECEIVER) SPECIFICATIONS
Input Voltage & Current	• Input Voltage: 11 – 13 V DC or PoE IEEE 802.3af Class 0 (CAT5e or higher) • Input Current: ≤ 1 A
Wireless & Audio Power	• Transmit Power (BLE): max. 10 mW EIRP • Audio Output Power: 18 dBu max. • Headphone Output: 2x 70 mW @ 32 Ω
Ethernet Interface	RJ-45 socket, IEEE802.3 (CAT5e or higher) • 100Base-TX (half+full duplex) • 10Base-T (half+full duplex)
Dimensions & Weight	• Dimensions: 212 x 44 x 189 mm (8.35″ x 1.73″ x 7.44″) • Weight: approx. 1000 g (2.2 lbs) without antennas and power supply
EW-DX SKM-S (HANDHELD TRANSMITTER) SPECIFICATIONS
Electrical & Wireless	• Input Voltage: 2.0 – 4.35 V • Input Current: < 300 mA • Power Supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack • Occupied Bandwidth: 200 kHz
Transmit Power (Radiated)	• Audio Link: 10 mW ERP (Range Y1-3: 12 mW ERP) • BLE: max. 10 mW EIRP
Dimensions (ø x l)	• Incl. MMD 835 microphone module: 50 x 268 mm (1.97″ x 10.55″) • Without microphone module: 40 x 200 mm (1.57″ x 7.87″)
Weight (without batteries)	• Incl. MMD 835 microphone module: approx. 304 g (0.67 lbs) • Without microphone module: approx. 195 g (7.14 lbs)
MMD 835 (MICROPHONE MODULE) SPECIFICATIONS
Transducer Principle	Dynamic
Sensitivity	2.1 mV/Pa
Sound Pressure Level	154 dB SPL
Pick-up Pattern	Cardioid
